i100 Pro V2 DIY kit
i100 Pro V2 DIY kit
Couldn't load pickup availability

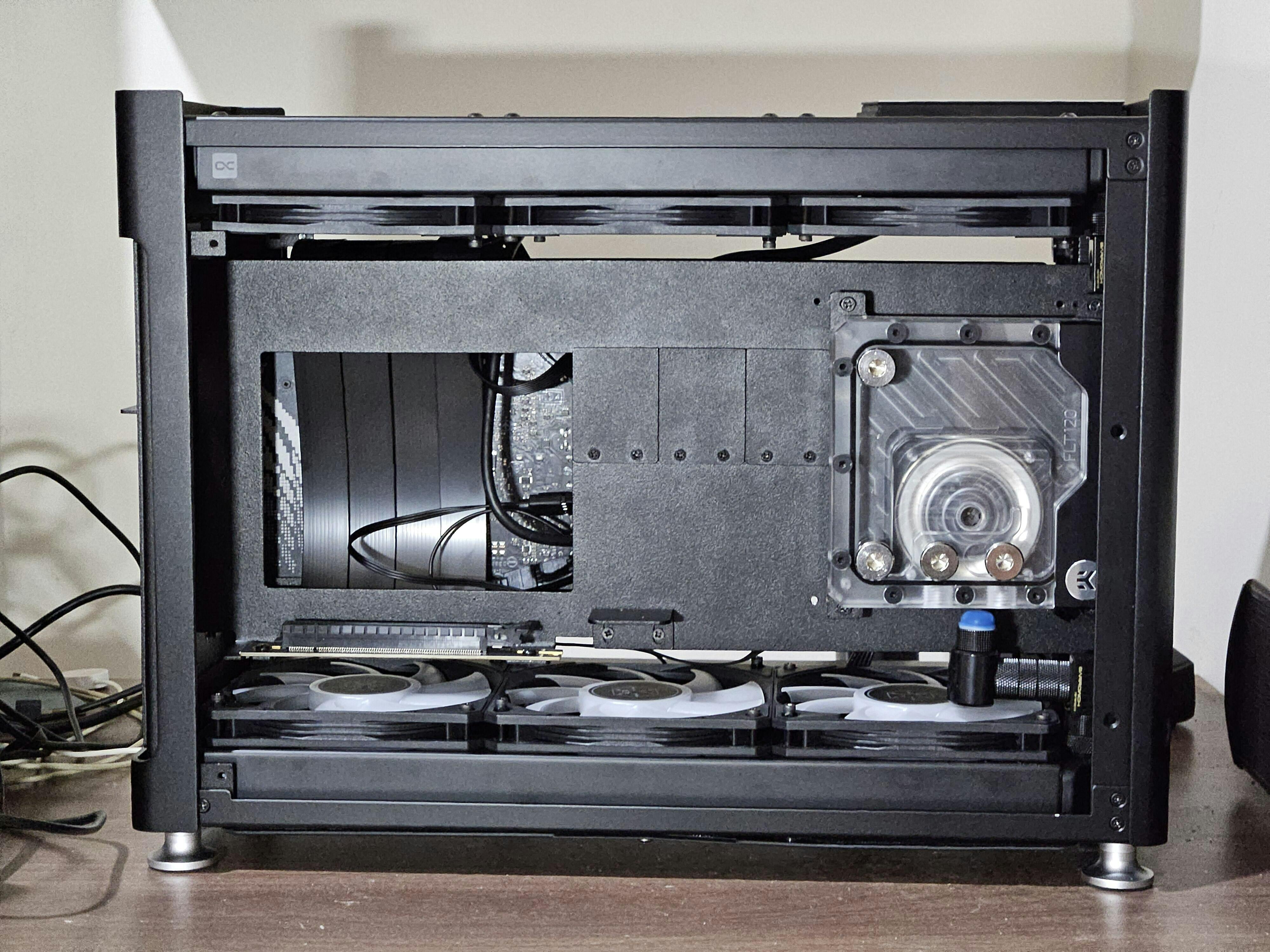

DIY kit to add dual 360mm radiator support to the JonsPlus i100 Pro case. Optimized for liquid cooling performance with support up to 30mm thick radiators and 25mm thick fans. Improved building experience with removable midframe for easy hardware installation and cable management outside of the case and no new screws required.
The i100 Pro V2 DIY kit was designed to fit the dual GPU slot version directly and is compatible with the triple slot version of the Jonsplus i100 Pro.
All parts are designed and manufactured in The Netherlands.
Parts list
Parts list
1x Rear IO panel.
1x Rear IO plate.
1x Front plate.
1x Motherboard midpla
1x GPU midplate.
1x GPU support.
3x GPU cable cut out cover.
1x Pump/Reservoir combo bracket.
1x PSU mounting bracket.
1x PSU cover / dual 2,5'' drive mount.
1x Top cable shroud.
1x Bottom cable shroud.
Extras included
Extras included
1x Drill guide for front plate. (Mounts to original case holes)
1x Drill guide for bottom radiator mounting. (Mounts to original case holes)
1x Metal drill size 2,5mm (Drilling pilot holes with use of the drill guides)
1x Metal drill size 4,5mm (Final hole size to be able to mount front plate and most common radiator screws - M3, UNC6-32 and M4)
1x Countersunk bit 6,3mm (To clean up 4,5mm holes)
1x Instructions on how to drill the holes and assembly the custom kit.
1x List of fittings for 4 major radiator setups.
1x List of optional cable extensions.
1x Cable lengths for optional custom cables.
Not included
Not included
- The kit does not work with the stock riser cable, recommended riser cable: Link UP Gen 4 Riser PN: PCIE4EXT11SR-025 (Right angle 25cm long)- A EPS extension cable, total EPS power cable lenght needed = 700mm. Most stock SFX / SFX-L EPS cables are 400mm long.
Compatibility
Compatibility
. ITX board only - DTX not supported.
2. Power supply support:
2.1 SFX.
2.2 SFX-L with a max length of 130mm.
3. Storage support:
3.1 Two 2,5'' drives supported - The drive mount can be flipped 180 degree to hide the 2,5'' mounts.
3.2 No support for 3,5'' drives.
4. Dual 360mm radiator support:
4.1 Max combined thickness radiator + fan = 57mm
4.2 Max radiator length = 408mm
5. Max GPU height is 155mm and max length support;
5.1 265mm to 285mm with a FLT120 D5 or DDC.
5.2 325mm with a FLT80 DDC - Side port closed with stock plugs
5.3 405mm with a EK Velocity² DDC 4.2 PWM CPU/Res/Pump combo block.
6. Possible to do hardware assembly and cable management outside of the case.
Customer Reviews
This mod is worth every penny. Was able to get it all installed in a couple hours and makes your PC a water cooling beast. Was able to lower my temps by 10-15 degrees because of this mod! The creator of this mod was super helpful and responded quick with any questions I had, the best experience I’ve had! Your work is amazing!
I love this i100 pro mod! Every piece was extremely well made and fit together easily by following the instructions. I'd highly recommend this to anyone, as it is really the best solution for fitting two 360mm rads in a case of this size. Really just worked perfectly for me.
Jeroen was very kind and patient, he took the time to answer all my questions and more! The mod is awesome, I can't wait to build it :)

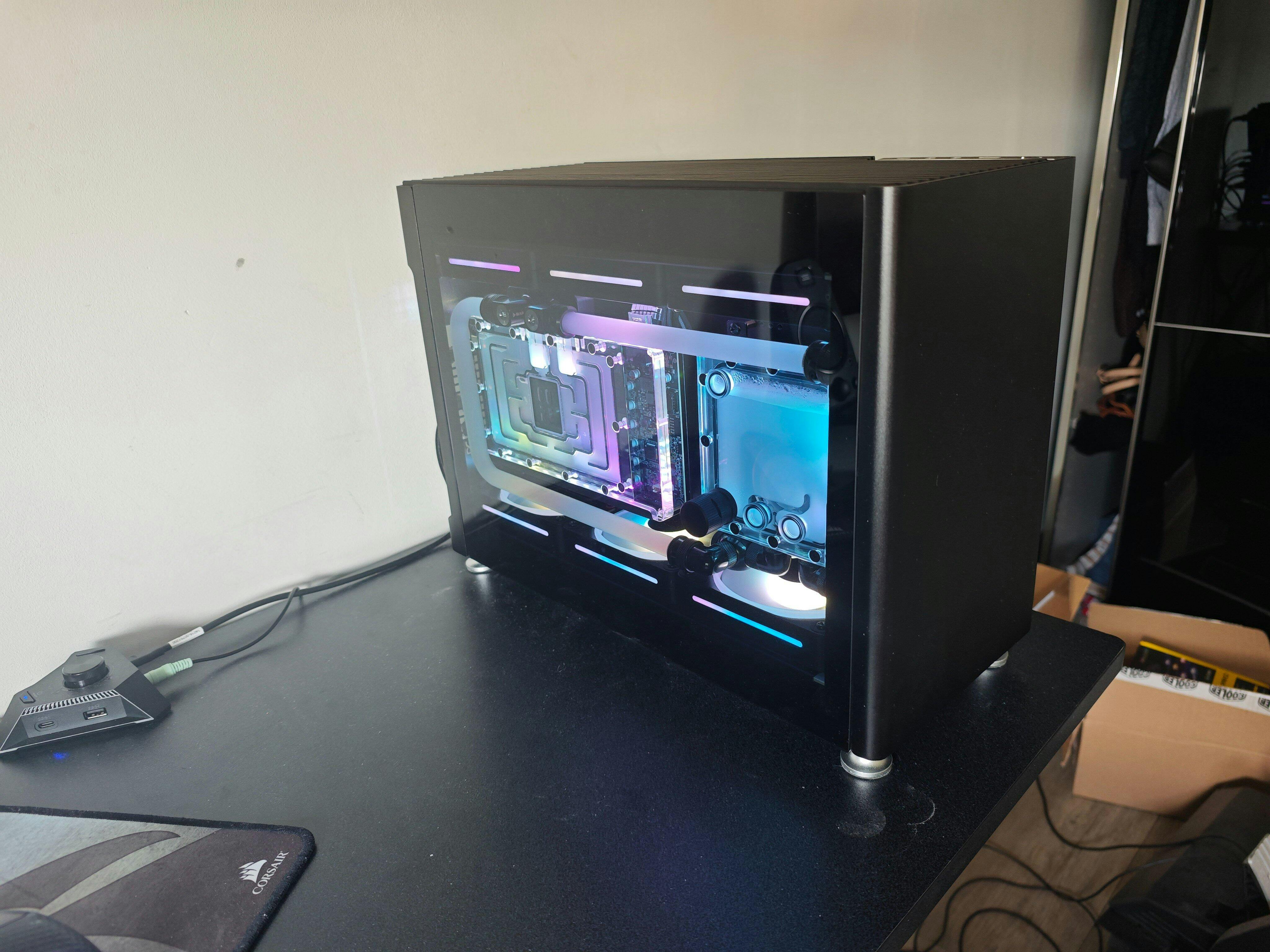

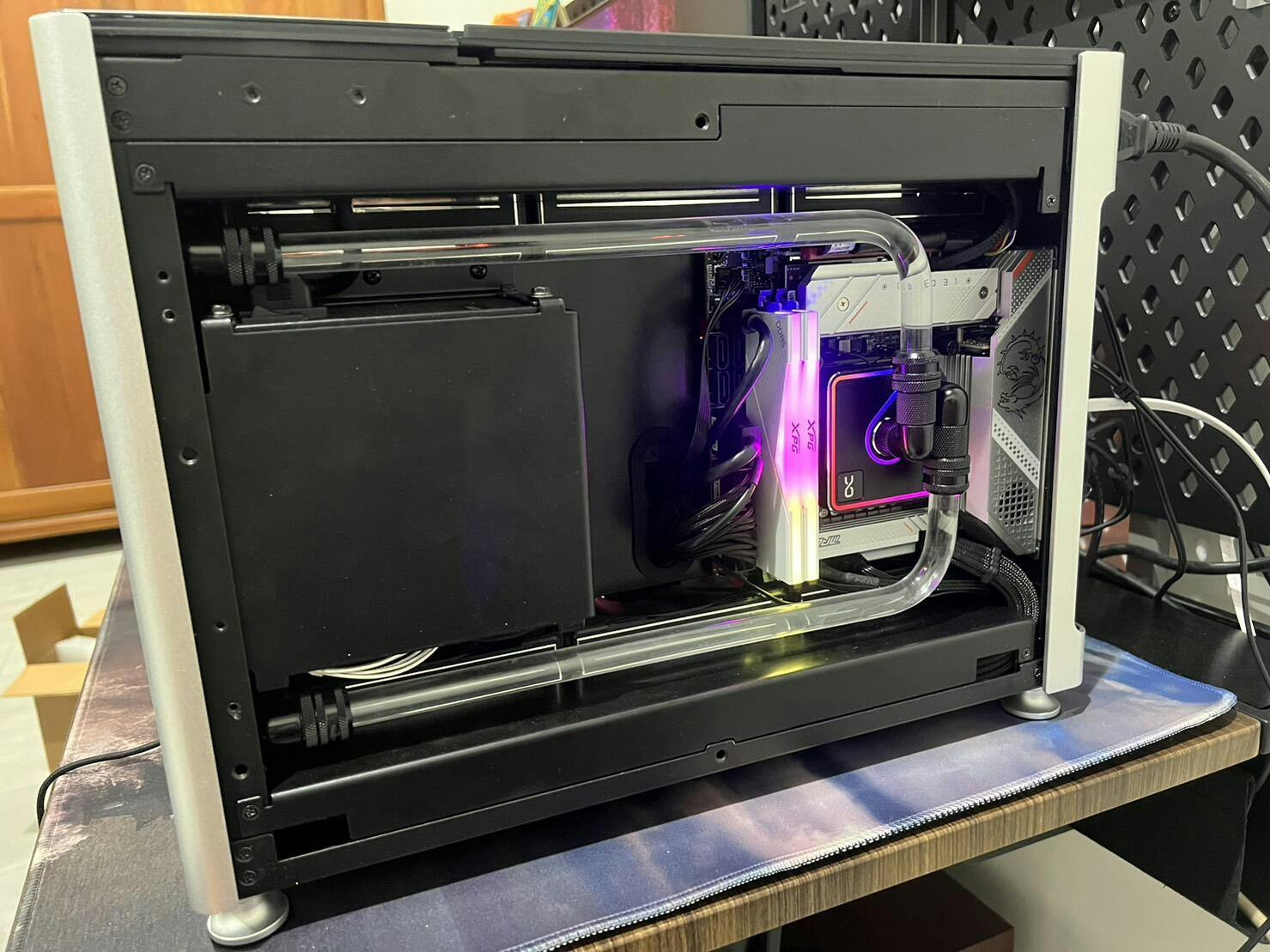

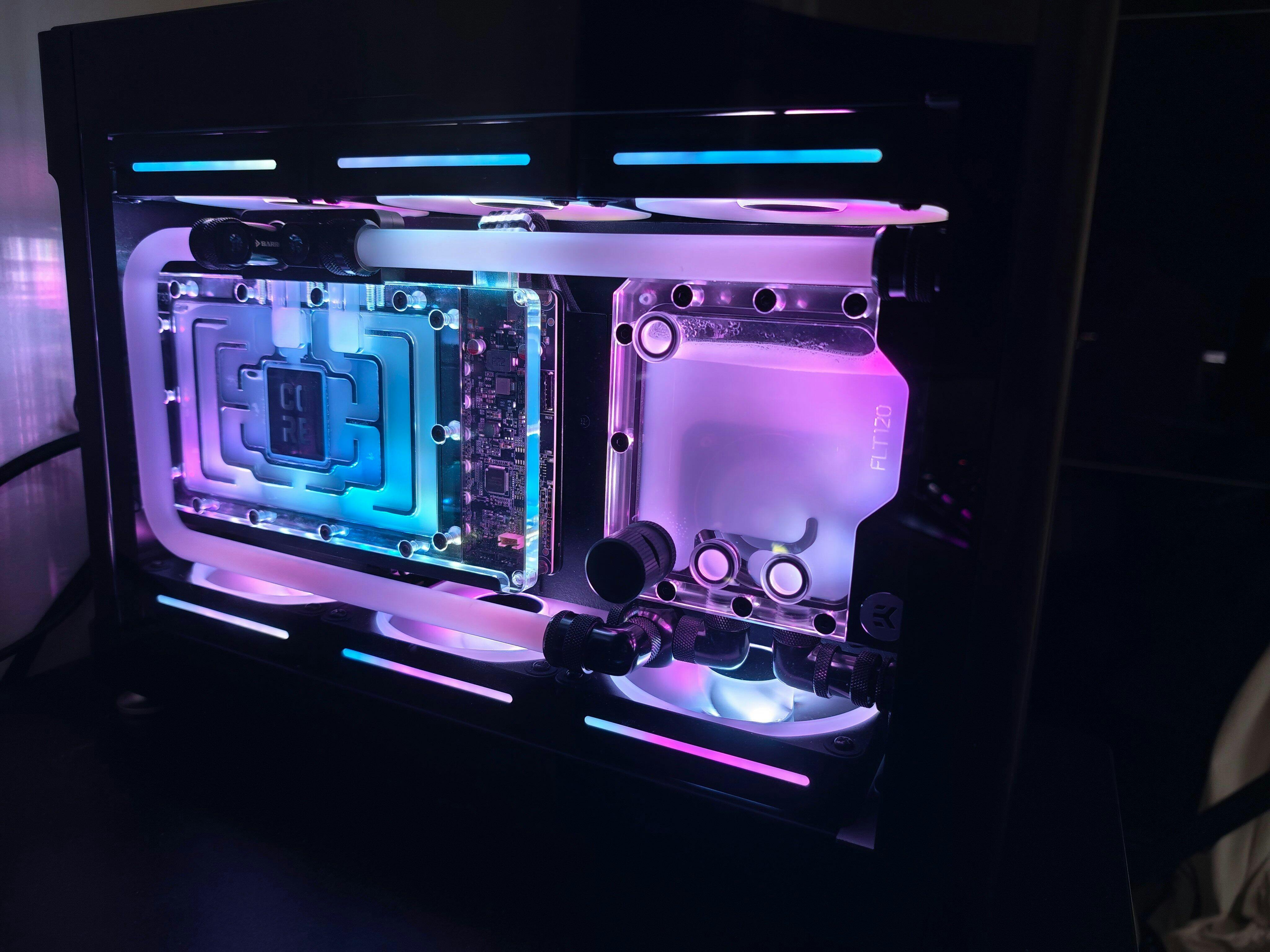

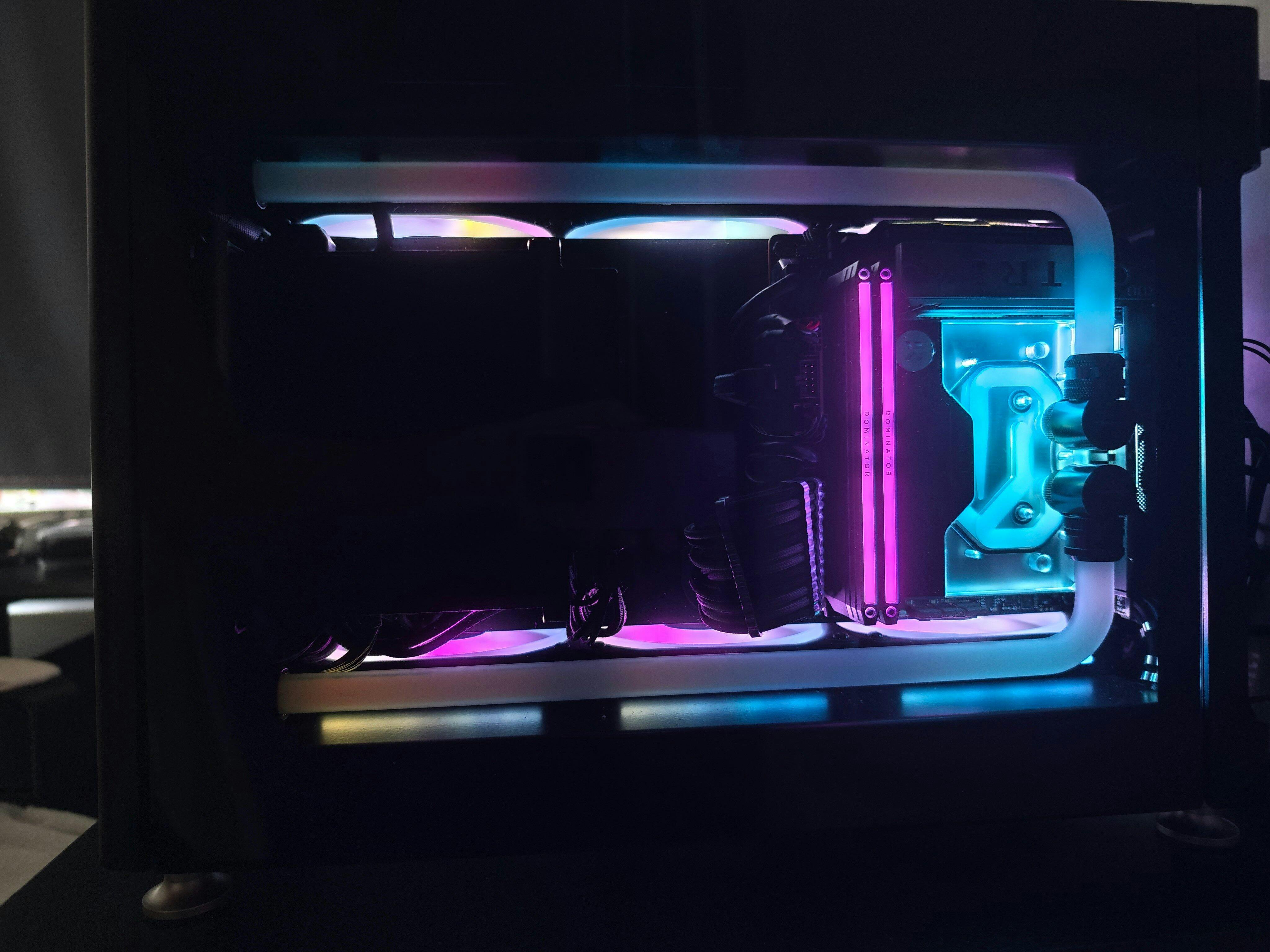

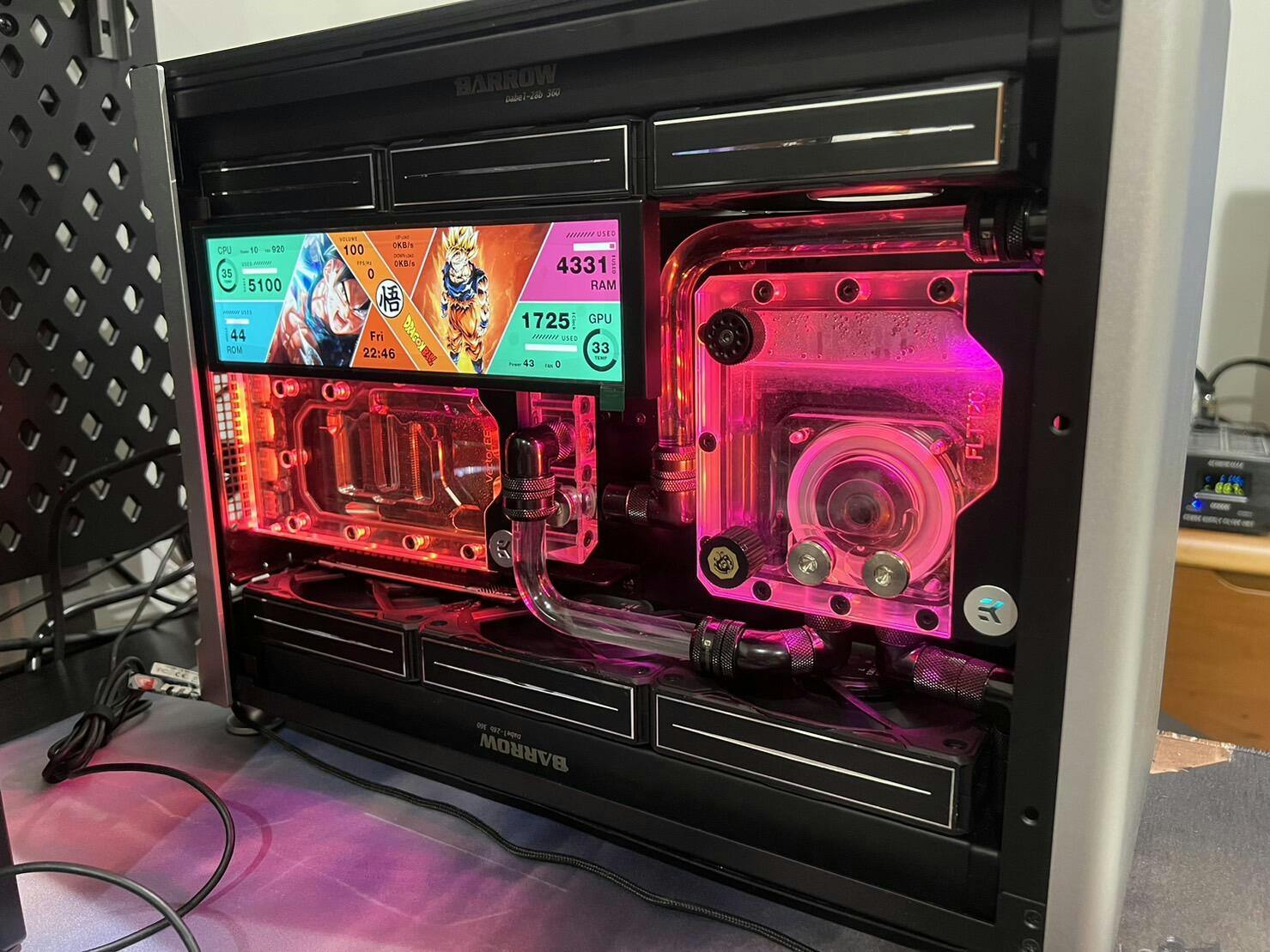

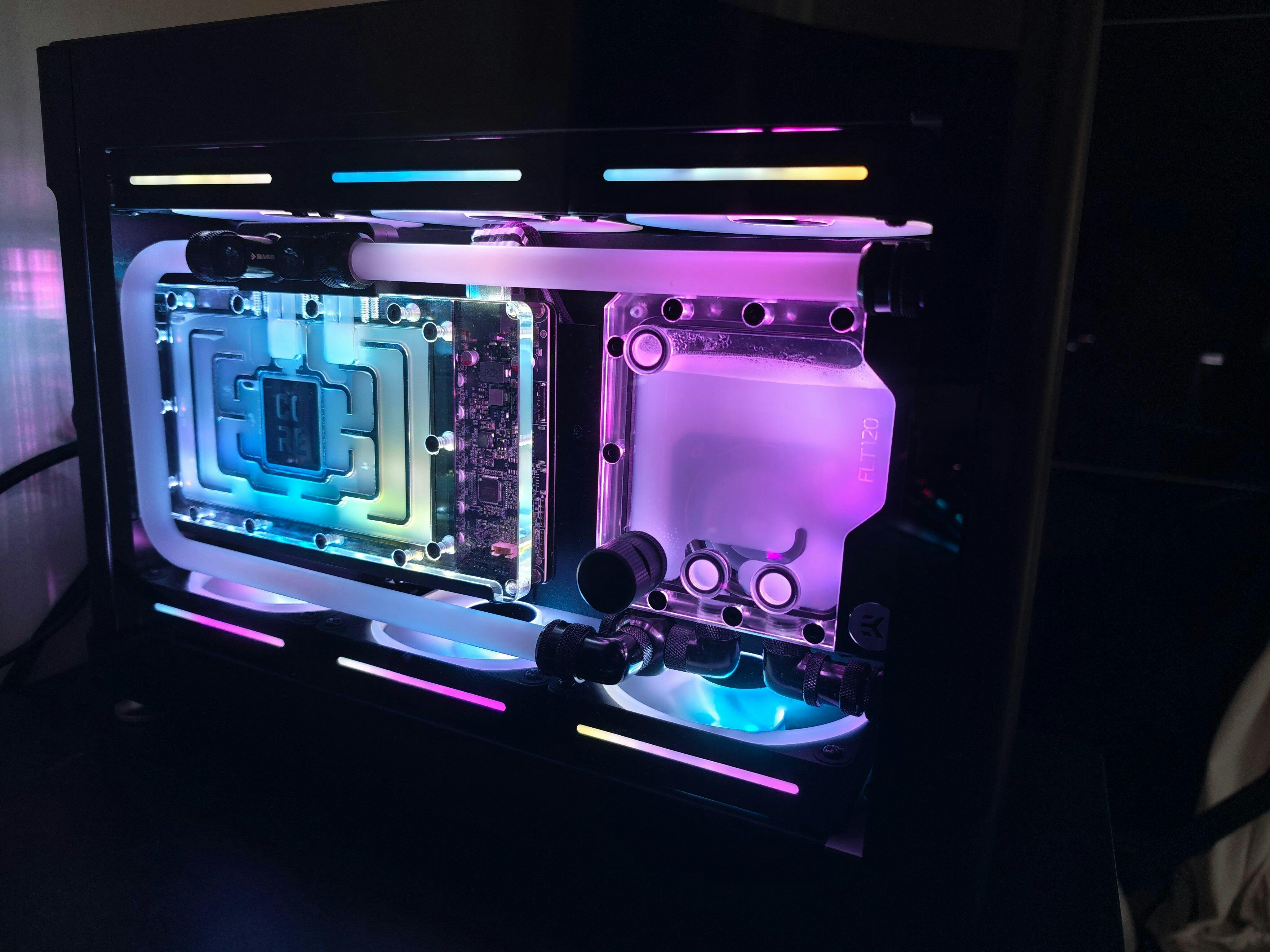

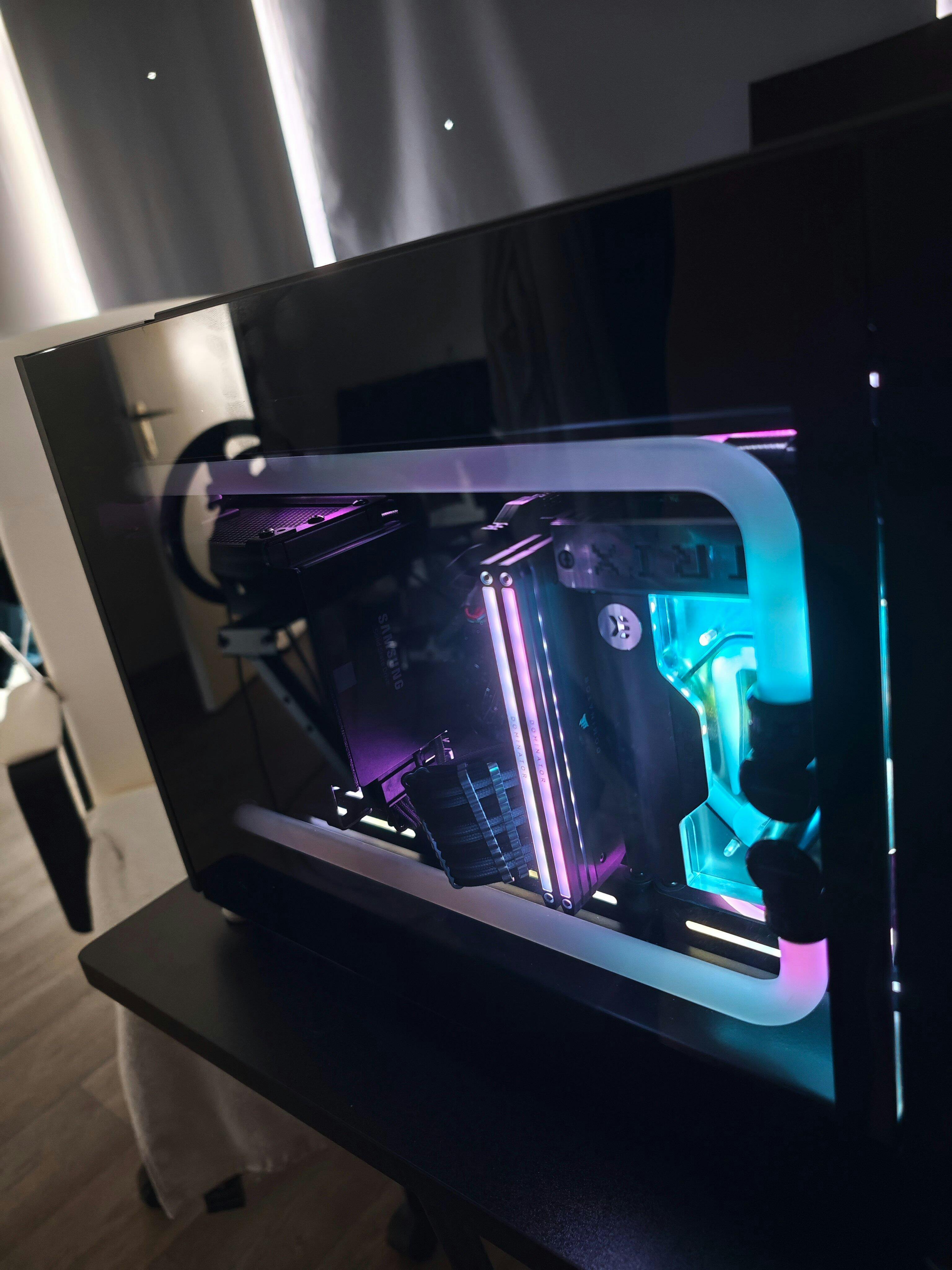

Just over a year ago (November 2023) while planning a water-cooled ITX build, I found a TerHorstCustoms YouTube video showcasing this case mod. After reading the comments I realized it was for sale. I reached out via the contact info on YouTube and was able to place an order. This is my first water-cooled build and it was ambitious considering the lack of working space inside an ITX case with dual 360 radiators, but I couldn't be happier with the result.
Motherboard - Asus ROG Strix X670E-I Gaming WiFi
Power supply - Silverstone SX1000 Platinum
CPU - AMD Ryzen 7 7800X3D
Ram - G.SKILL Trident Z5 Neo Series 64GB (2 x 32GB)
GPU - Nvidia GForce RTX 4090 FE
M.2 SSD (x2) - WD_BLACK SN850X NVMe M.2 2280 4TB
Sata SSD (x2) - SAMSUNG 870 EVO Series 2.5" 4TB
Radiator (x2) - Black Ice Nemesis 360GTS
Waterblocks - EKWB
Fans (x6) - Noctua NF-A12x25 PWM chromax Black
Cables - Cablemod
Received the components in good condition. Some of the finish was a bit rough but you don’t see it once installed. Instructions were detailed and clear. The design is well thought out, and should you follow the instructions, execution is very feasible.
Having built many watercooled systems, about a dozen of which are custom ITX(Meshilicious, Ncase N1, FormD T1), I’d say that this product makes building out the Jonsbro i100 really simple. 3/10 difficulty with this kit compared to maybe 6/10 without. Be sure to examine and follow the fittings guide exactly if you want a good result. A few substitutions can be made but the designer has laid out the most optimal fittings scheduled in the instructions already.
You’ll probably want to have at least some experience with hard tubing before taking this on. The runs are relatively short, given it’s an ITX case, but some bends will require a degree of exactness that would have been more forgivable in an ATX build. Luckily because the runs are short, you wont need much material to get it done, and consequentially, you have multiple attempts with the same length of raw tubing compared to an ATX build.
Cost is high for a product like this, but fair considering it’s a small run custom thing. The passion for beautiful ITX systems really shows in the design and I believe it’s well worth the cost, given the effort the designer spent on it. I doubt there’s much profit being realized here.
Shipping from the Netherlands is killer though, but that’s no fault of his.
